Access-ER e-ID
Mobile biometric
handheld terminal
Border Control | Law Enforcement | Military | Access Control
Mobile biometric handheld terminal
Rugged, lightweight mobile device with Fingerprint and Contact | Contactless Card Reading

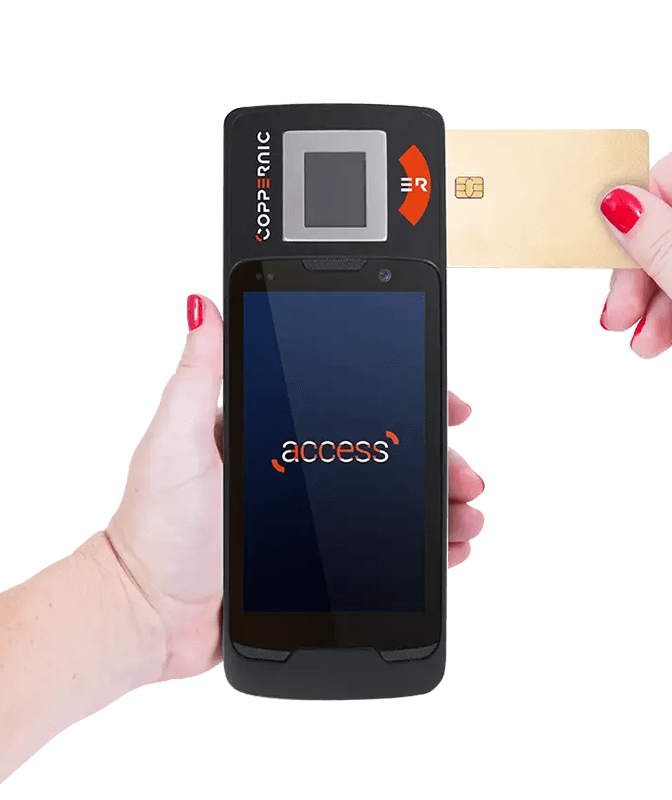

The Access-ER combines the attributes of a rugged Android mobile device with a high performance FAP30 Fingerprint sensor, an optional iClass HF RFID reader module and ISO 7816 Contact Card reader.
IDENTIFICATION
options
The Access-ER extends the family of Access terminals into new mobile solutions
for Biometric Identity and Physical Access Control applications.
MULTIPLE
keypoints
CHOICE
‘Best-of-breed’ Fingerprint capture and RFID from leading technology suppliers.
PERFORMANCE
Extended chassis for high performance RFID reading (front/back).
RUGGED
Fully integrated, one-piece rugged solution.
LIGHTWEIGHT
Easy to handle with one hand.
TECHNICAL
specifications
MODULES | HF NFC | FAP30 Module Integrated Biometrics FAP30 ‘Danno’ Fingerprint Module NFC : NXP IC on board (NQ330 : PN553 + P73N2M0) Compliant with ISO14443 A/B and ISO15693 HF | LF | BT HID-RC | FAP30 Module (OMNIKEY 5127CK Reader Core) – OPTIONAL Integrated Biometrics FAP30 ‘Danno’ Fingerprint Module |
| CAMERA | Front: 5MP | Rear: 13MP Autofocus |
| SECURE ELEMENT | P73N2MP (NFC IC) | SIM/USIM socket (SWP IF with NFC IC + ISO7816 IF with CPU) |
| BARCODE READER | Honeywell N6603 2D Imager |
| OPERATING SYSTEM | Android 10 |
| PROCESSOR | Octa Core @ 2.2 GHz | Qualcomm SDM660 |
| MEMORY | 4 GB RAM | 64 GB Flash | Up to 64 GB via Micro SD slot |
| DIMENSIONS & WEIGHT |
210 mm x 79 mm x 17.2/28 mm (LxWxD) | 310 grams including battery |
| SCREEN |
5.0’’ HD screen (1280×720) | Capacitive touch panel | Touch Panel Glass: Corning Gorilla Glass 3 |
|
EXTENSION, SENSORS, COMMUNICATION PORTS |
1 Micro SD slot | 2 Nano SIM/USIM slots (ISO7816) | 1 USB 3.0 Type C | 2 Pogo Pins for Charging | Speaker | 1 Microphone | 1 Receiver | 1 Power Key | 1 Volume Key Up & Down |3 Programmable Keys | 1 Gyroscope | 1 e-Compass | 1 Light Sensor | 1 Accelerator |
| BATTERY |
3.85V | 4000 mAh exchangeable battery | Support QC3.0 Quick Charge |
| IP SEALING | IP67 |
| TEMPERATURES & HUMIDITY |
Operating Temperature: Battery in charging mode > 0°C to +45°C | Battery in discharging mode > -20°C to +50°C Storage Temperature: -20°C to +50°C | Humidity: 5% to 85% (non-condensing) |
| DROPS |
Multiple drops from 1.2m | Compliant MIL-STD-810G |
| BLUETOOTH | Bluetooth 5.1 |
| WLAN | WiFi (2.4 GHz – 5 GHz) | 802.11 a/b/g/n/ac |
| WWAN | GSM | GPRS | EDGE supported frequency bands: 850 – 900 – 1800 – 1900 MHz 3G supported frequency bands: UMTS B1 (2100) – B2 (1900) – B4 (1700) – B5 (850) – B8 (900) 4G supported frequency bands: LTE B1(2100) – B2 (1900) – B3 (1800) – B4 (1700) B5 (850) – B7 (2600) – B8 (900) – B17 (700) – B20 (800) – B26 (850) – B28 (700) – B38 (2600) – B39 (1900) – B41( 2500) – B19 (800) |
| INTEGRATED GPS | GPS | A-GPS | GLONASS | BeiDou | GALILEO |
